| สถานที่กำเนิด: | จีน |
|---|---|
| ชื่อแบรนด์: | BOTO |
| ได้รับการรับรอง: | CE ISO |
| หมายเลขรุ่น: | บี-ซี-120 |
| จำนวนสั่งซื้อขั้นต่ำ: | 1 ชุด |
| ราคา: | negotiable |
| รายละเอียดการบรรจุ: | กล่องไม้ |
| เวลาการส่งมอบ: | 15 วัน |
| เงื่อนไขการชำระเงิน: | L/C, D/A, D/P, T/T, เวสเทิร์นยูเนี่ยน, MoneyGram |
| สามารถในการผลิต: | 1,000 ชุด / ปาก |
| การใช้งาน: | เครื่องทดสอบอเนกประสงค์, เครื่องทดสอบกระบวนการ, เครื่องทดสอบสิ่งทอ | ช่วงอุณหภูมิ: | 0 องศา ~ +70 องศา |
|---|---|---|---|
| การรับประกัน: | 24 เดือน | สี: | สีขาว สีเทา และสีขาว |
| ขนาดด้านใน: | 45*45*60 (ซม.) | ความชื้น: | >65%R·H |
| อัตราการไหลของแก๊ส: | 12-16 มม./วินาที | อุปกรณ์ทดสอบ: | ไดนามิกและแบบคงที่ |

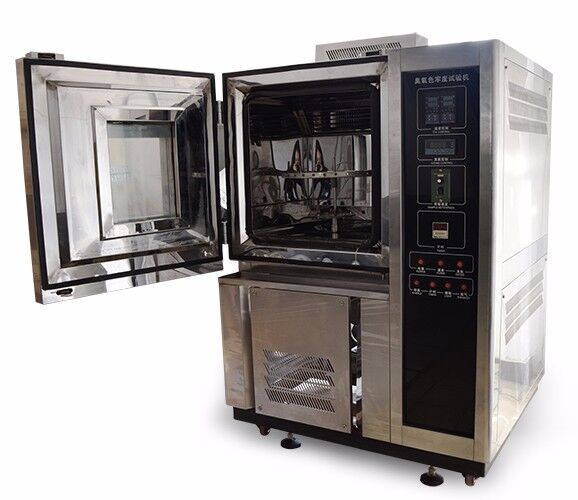

Ozone Aging Test Chamber
Description:
The Ozone Aging Test Chamber is designed to evaluate the resistance of rubber, plastics, and other materials to ozone cracking under controlled environmental conditions. It features an ozone concentration range of 0 to 300 ppm, temperature range of 0°C to 70°C, and humidity control above 65% RH. The chamber supports both dynamic and static test modes, with a 360-degree rotating sample holder at 1 rpm and gas flow rate of 12 to 16 m/s. Equipped with an imported LED digital temperature controller and precision time controller, it ensures accurate and repeatable test results. Multiple safety protections include leakage, short circuit, over-temperature, motor overheating, and over-current protection. It is widely used in automotive, rubber, plastics, and materials testing industries for quality assurance and product development.
Applicable industries:
Ozone resistance aging test box is widely used to control products quality in measuring quality control; Rubber & Plastics; automobile production; wire and cable; packing materials; instruments and meters; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research laboratories; inspection arbitration, and technical supervision departments and other rubber products.
Technical Parameters:
| Working size | 400mm × 400mm × 500mm (depth × width × height) |
| Ozone concentration range | 25pphm ~ 800pphm (adjustable) |
| Temperature range | RT +10 ℃ ~ 60 ℃ (adjustable) |
| O3 concentration fluctuation deviation | ± 10% |
| Temperature uniformity | ± 1 ℃ (no load) |
| Temperature fluctuation | ± 1 ℃ (no load) |
| Timing range | 0 ~ 999 hours (adjustable) |
| Power | AC220V ± 10% 50Hz |
| Weight | 200kg |
Product details:
Specifications:
1. The apparatus consists of an ozone generator, fans, baffles, sample holder and the sample compartment composition, the use of high-voltage transformer ozone generator discharge through the grid, the generator is placed before the low pressure fan, a separator system by ozone is injected into the test warehouse, sample holder mounted on the wire slip ring separated clip can be applied to samples of various sizes.
2. The device is equipped with high-efficiency ozone generator, controller, closed-loop control of ozone concentration and can accommodate 24 rotating sample holder sample by simply setting the parameters and current parameters pre-set can be displayed on the screen , thereby increasing the accuracy of the device can be manipulated and test results.
Ozone chamber ozone for textile color fastness test steps:
1. a control sample and a standard sample, and placed in the oven temperature (64-82F) and a relative humidity of 67% ozone test compartment until control standard colors fade and fade to the same standards.
2.the experimental phase of a cycle, the cycle is repeated until the sample reaches a predetermined color, or reaches a predetermined number of cycles.
3.observe the degree of discoloration, to arrive at the fabric resistance to ozone color fastness.
